ACO V100G Tram
Drainage for the 4ft and the grooved rail profile of the tram track.

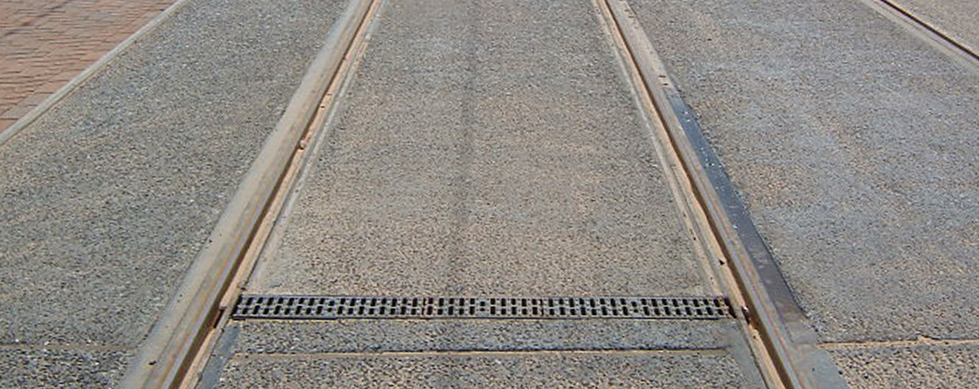

The ACO V100G Tram Drain is designed to provide efficient surface water drainage for the 4-foot and the grooved rail profile of the tram track.
The channel construction and the lightweight properties of polymer concrete ensures the system is quick and easy to install, making it suitable for integration into second stage track slab construction. The one piece channel design also prevents leakages from channel sections.
As standard, ACO V100G Tram Drain is supplied with ductile iron protective edge rails for improved strength and bonding between the channel and surface material.
Slotted Ductile Iron gratings fitted with ACO Drainlock™ and certified to Load Class E600 complete the system. An optional security locking kit is available upon request.
A channel assembly suitable for lighter duty applications is also available upon request. This channel assembly is fitted with black composite HeelGuard™ gratings certified to Load Class C 250 which also help reduce the possibility of stray current.
Available with slotted ductile iron gratings fitted with ACO Drainlock™ and certified to Load Class E600 or as a channel assembly fitted with black composite HeelGuard™ gratings certified to Load Class C 250.
